Mintion Nozzle Camera | AI Detection Nozzle Camera for First Layer Printing

In Stock

Regular price $77.99 | Save $-77.99 (Liquid error (sections/product-template line 238): divided by 0% off)

/
Mintion Nozzle Camera (NZC) is specially designed with an auto-focus lens and two pieces of LEDs to observe the first layer printing for 3d printing. With this small tool, it will be helpful to understand how the filament is flowing,...

Estimated delivery between and .

PRODUCT DETAILS

Mintion Nozzle Camera (NZC) is specially designed with an auto-focus lens and two pieces of LEDs to observe the first layer printing for 3d printing. With this small tool, it will be helpful to understand how the filament is flowing, layer adhesion, and extrusion diagnosis. Cooperating with Obico, a well-known smart AI detection provider in the 3d printing industry, this nozzle camera will make it much easier to access Obico's First Layer AI Detection to have smart detection for your 3d printer. (The USB cable is included.)

We have designed two camera holders for Prusa i3 MK3S+ and Voron StealthBurner, which you can download from Printables.com directly.

Note: Mintion Nozzle camera is not a standalone product, if your printer is a Marlin system, then you need a Raspberry PI to run on Octoprint to use; if your printer is a Klipper system, then you can plug & play to use.

Packing List:

Nozzle Camera                     x 1set

USB Cable 2M or 2.5M         x1pc

Screw                                    x4pcs

Sticker                                   x1pc

Ties                                       x10pcs

05906059
Mintion Nozzle Camera | AI Detection Nozzle Camera for First Layer Printing
2M for Prusa i3 MK3S+ / One Year (Paid for 9 months) - $77.99
  • 2M for Prusa i3 MK3S+ / 3 Months for Free - Sold out
  • 2M for Prusa i3 MK3S+ / One Year (Paid for 9 months) - $77.99
  • 2.5M for Voron StealthBurner / 3 Months for Free - Sold out
  • 2.5M for Voron StealthBurner / One Year (Paid for 9 months) - $78.99
  • Only AI Detection by Obico / One Year (Paid for 9 months) - $35.00

Mintion Nozzle Camera | AI Detection Nozzle Camera for First Layer Printing

Shipping Costs

We distribute worldwide via 4PX, EMS, DHL, FedEx, UPS, USPS, and particular freight companies for unique items. We offer Free Shipping when the order is equal to or over $20.



Order Confirmation & Shipment

As soon as you place your order, you will receive an order confirmation e-mail. This means that we have received your order in our system and pre-authorized your credit card for the purchase. As soon as we receive your order, we will arrange the shipment and send you the tracking information within 24 hours, then you will receive an email with the tracking number. If you do not receive tracking information from us within three business days of your order, feel free to follow up with us at shop@mintion.net.



Shipping Duration

All the products on our shop has shown the location to ship from, and the following duration days are for reference:

WarehouseNorth AmericanEuropeOther Areas
China5-10 working days5-12 working days7-20 working days
US3-7 working days--
European-3-10 working days



Title and Risk of Loss

Title to all Products supplied hereunder shall pass to Customer when delivered to the carrier and thereafter, except as otherwise explicitly provided herein, all risk of loss and/or damage to any Products ordered hereunder shall be borne by Customer.



Inspection and Claims for Damage in Transit

Customer shall carefully examine all deliveries of Products made hereunder and within five (5) days of the receipt notify our shop of any alleged error, shortage, defect, or non-conformity of any such Products. Any failure by Customer to examine and report shall constitute a waiver of any claim or right of Customer against our shop arising hereunder or by law concerning any such error, shortage, defect, or non-conformity reasonably discoverable by such examination Customer shall make any claims by Customer for damage or loss in transistor against the carrier.

Auto Focus & LED Integrated

The LED will be illuminated when the cable is plug

Nozzle Camera Mount

We have designed for Prusa i3 MK3S+ and Voron StealthBurner head, and more is coming

Voron StealthBurner

Prusa i3 MK3S+

Different Perspective on 3D Printing

Observe the details on filament flowing, extrusion, and adhesion for your 3d printing

Without First Layer AI Detection

With First Layer AI Detection by Obico

Three months subscription for FREE

Specification

Model

NZC

Sensor Size

1/3" CMOS sensor

Resolution

1920(H) * 1080(V)

Frame Rate

1080P @30FPS

Lens

Auto Focus

Lens Distance

3cm in default, 2-5cm on focus range

Lens FOV

72 Degree

Exposure

Auto Exposure

LEDs

Auto Illumination

FPC Cable Length

180mm

USB Cable Length

2M or 2.5M

Power

DC5V 170mA

FAQs

Why do we make Mintion Nozzle Camera?
The Mintion Nozzle Camera (NZC) isn’t the first nozzle camera out there. We were inspired by other nozzle cameras out there such as the 3DO nozzle camera, but after trying it we found ways it could be improved such as incorporating lights, adding auto focus, etc… so we decided to create a nozzle camera of our own and easier to approach. Considering the first layer observation, we combined with Obico First Layer AI Detection for a different smart monitoring on 3d printing.
What printer should I use for this nozzle camera?
Mintion Nozzle camera is not a standalone product, if your printer is a Marlin system, then you need a Raspberry PI to run on Octoprint to use; if your printer is a Klipper system, then you can plug & play to use.
How shall I install the camera to my printer?
This camera is integrated with LEDs near the sensor and plug-and-play. We have designed some holders for this camera, such as Voron Stealthburner extruder, Prusa i3 MK3S+ extruder, etc.

You can print the holder and screw the holder onto the hotend, and connect the USB to the Raspberry Pi board (Marlin) or Mainboard USB socket (Klipper), then the nozzle angle video feed will be shown.
Why it's only in 1080P resolution, not to 4K Resolution?
For video straming, the 1080P@30fps is enough, because the nozzle camera view scence is narrow and small, there's no big difference bewteen 1080P and 4K resolution;

Secondly, the Raspberry Pi chipset is built with limited resource on handling with MJPEG video streaming, higher resolution means more exhaustion for chipset resources. 1080P resolution is almost the maximun it can handle with.

Finally, for First Layer AI Detection by Obico, 1080P image is enough to deal with; 4K resolution image maybe affected by network bandwith.
How can I get the notification when it detected?
You can install the Obico app to obtain the message push or the email for notification.
How long do we have the Obico AI First Layer Detection subscription?
In default, each Mintion Nozzle Camera will have THREE Months subscription of Obico First Layer AI Detection service for FREE. You will get the code from us to subscribe on Obico.

Customer Reviews

Based on 10 reviews
40%
(4)
30%
(3)
0%
(0)
0%
(0)
30%
(3)
S
Simon Nelson
Minton Nozzle Camera on Prusa Mini +

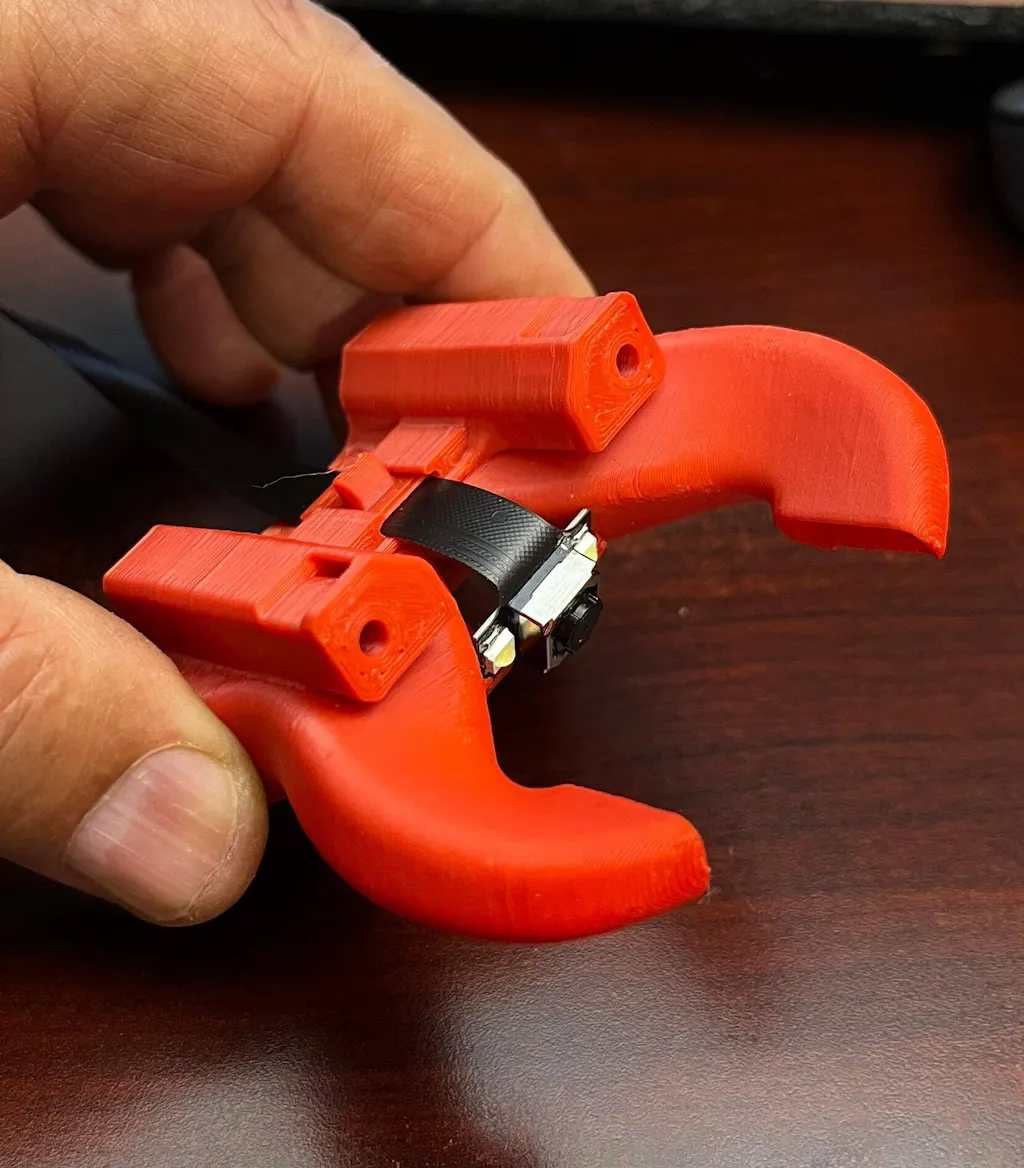

I am very pleased with my tiny Nozzle camera. Found a bracket on Prusa models print web site designed by Neil. Had to alter it a little to fit my fan that it clips on to. Also used a cheap WiFi enderscope unit and app to send picture to iPhone. Works very well with clear picture/video

S
S.K.
Avoid this company.

Bizarrely, my previous review vanished - so I guess I'll leave another one. I'll make sure to post this one on Judge.me, as well. This camera worked great, but the cable got pinched in the cable chain of my Voron 2.4 (a Formbot kit) and failed. After a couple hours of printing, the camera started cutting in and out on Y-axis movement, and then stopped entirely. I pulled the cable back out of my cable chain, which got it working again for a short period, then it failed again (I presume the cables inside just gave up the ghost at this point.)

Now, I assumed fault for this - I probably should have made sure that the cable chain had enough wiggle room to not pinch the cable. No problem - I'll order another cable. However, there isn't one available for purchase on the website, so I emailed their sales team to see how I could get one.

What ensued was a 5 day back-and-forth over email, in which they refused to SELL me another cable, insist I was incorrect in my diagnostic (I currently have the camera working with a soldered together janky cable, so I'm pretty certain what the problem is), and then tell me that aside from not selling the cable separately, that since this is a "DIY product", there is absolutely no warranty - when I was actually just trying to BUY a cable. (So, red flags there, as well.)

Anyway, at the end of this (FIVE days later), they actually DO tell me that they can sell me a cable (they will have to create a one-time purchase link for this), but then tell me that since it's coming from their China warehouse, SHIPPING will be $15. At this point, they have not given me a price for the cable, just for the shipping, and I have been out of my shiny brand-new camera that I got to use for less than 4 hours.

I looked up a competitor, found that they DO sell replacement cameras (with US-based shipping), and they're about $5 more per unit. I declined to purchase the cable, and I decline to purchase anything else from Mintion.

D
Darrick Wiebe
Good quality and great service

First camera arrived damaged and would not power on, emailed support with pictures of damaged circuit board and they promptly shipped a replacement unit. Modified the USB cBle slightly for install on Prusa printer. After using for a month I am very happy with the product. I would recommend to anyone looking for a nozzle camera and the built in lighting works great.

L
Liljegren
Easy install narrow focus

Easy to install and setup.
I find the images from the ai snapshot often blurry (probably motion) happy with the product.

T
Tyler M.
Good cam, when it works.

I am part of the Obico training, and am using this camera on a StealthBurner cover. The cam is currently experiencing some issues, but when it was working… it was great. According to Mintion support, the camera is having signal/interference issues.
Low points: The cam doesn’t have a guide for V4L2-CTL commands that are defined. My cam video out of the box was very dark and grainy, and required hours of trial and error to get the undefined settings tuned for good clear video. A wiki/github guide with defined commands would have helped greatly.
The onboard LED’s aren’t controllable, or at least Mintion doesn’t tell you how. This would be nice to get some dimming, as my E3Dv6 blue sock is causing some light exposure problems due to being closer to the light source.
The lack of setup guides for klipper/crowsnest is a pain too, it again took hours of trial and error to find the best resolution and streamer protocol to get more than 1-2 FPS to stream.
———
Pros: if you have a smaller heat block, or the option to mount this further away, it’s crisp and clear with a good internet connection.
The LED’s built in are a big upgrade compared to the similar 3DO cam offering. Plenty of FPC ribbon to reach where you want to install it.

A
Andrew Beattie

Set up was very easy camera works fantastic great product

N
Nicholas Bradley
Generally good with some issues

The camera quality is good and setup is easy. When the camera works, it works very well. However, I have found that the ribbon cable, USB cable, and PCB suffer badly from EMF interference. I have found that interference occurs most frequently when the ribbon cable contacts the heatsink in my toolhead, or when the USB cable contacts the toolhead control board. I have solved the EMF issue by applying copious amounts of electrical tape to the ribbon cable, USB cable (near the 4 pin connector to the camera PCB, where the wires are not insulated), and on the toolhead control board. I would recommend that Mintion consider adding more insulation to the USB and ribbon cables. I recommend that users attempt to limit contact between the cable and any toolhead electronics (or metal parts sharing the ground).

S
S.F.
Dead on Arrival - Horrible Support

The unit I got was dead on arrival and could not be detected by USB.
Support was unresponsive for weeks at a time. After they did start replying the blame for lack of support was shifted to me. They claimed I shared to little information, although I always promptly replied with everything that was asked at the time.
I am disappointed to say the least. I had to resort to a credit card chargeback to get my money back. I would've rather had a replacement.

S
S.K.
Good camera quality. Fragile cable, no after-sales support.

The camera quality was great. However, after less than 5 hours of print time, the cable (run through the cable chain on my Formbot Voron 2.4 kit - a very standard Voron build) has failed. I figured that this may be an issue of installation - maybe I got the cable kinked - so I tried to contact Mintion for a replacement cable (to purchase, mind you, I didn't want to try to claim warranty just in case my installation was the problem,) and was told flat-out that they will not sell me another cable.

So I tried to contact technical support, and was told once again that there is no recourse - I need to purchase an entirely new kit if I want this to work again.

That's obviously unacceptable. I can't for the life of me understand why there is no way to purchase a replacement cable, so I'm afraid I have to give this a 1-star review for awful after-sales support. I'll look elsewhere for nozzle cameras for my other printers.

L
L.R.
Better AND cheaper than other nozzle cams

I bought 2 nozzle cams from another brand. They were way more expensive and I had to purchase even the LEDs and cable on top. Both cams are already broken, the quality of the flat cable was not so durable.

I have this cam now for a few weeks, and I love this cam. It is more durable and the solution with the build in LEDs is genius.
